معلومات تفصيلية |
|||
| التكوين الكيميائي: | ملغ لي | مادة: | المغنيسيوم الليثيوم |
|---|---|---|---|
| شكل: | سبيكة | وزن: | 6-8 كلغ |
| وزن الوحدة: | 4 كجم لكل قطعة | محتوى لي: | 9-10 ٪ |
| محتوى المغنيسيوم: | الرصيد | درجة: | MGLI2 ، MGLI5 ، MGLI10 |
| كثافة: | <1.6 جم/سم 3 | بنية البلورة: | سداسية معبأة (α) ، مكعب محور الجسم (β) |
| الموصلية الحرارية: | جيد | الموصلية الكهربائية: | جيد |
| ليونة: | جيد | أنظمة الانزلاق: | تحسن |
| قدرة المعالجة: | تعزيز | ||
| إبراز: | Li 10% Magnesium Lithium Alloy Ingot,4 kgs per piece MgLi Alloy Ingot,MgLi2% MgLi Cast Ingot,4 kgs per piece MgLi Alloy Ingot,MgLi2% MgLi Cast Ingot |
||
منتوج وصف

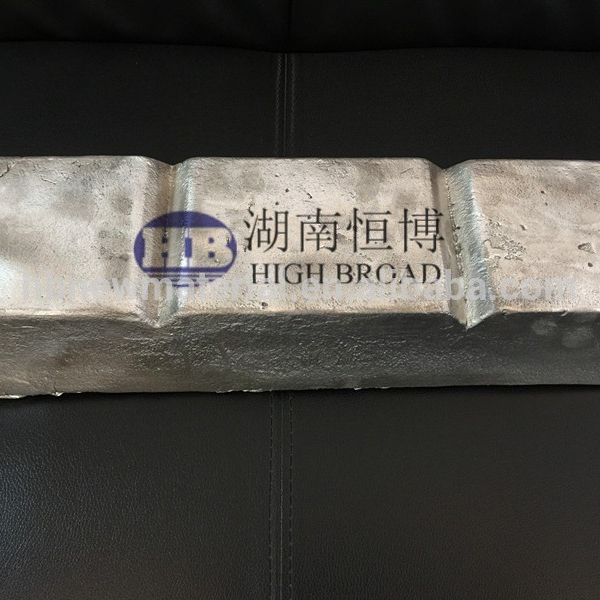

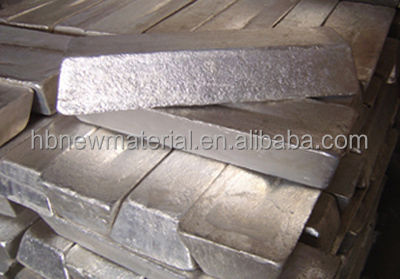

High Quality Light Metal Magnesium Lithium MgLi10% Alloy Cast Ingot MgLi
Product Specifications
Commodity: MgLi alloy Ingot
Chemical content: Li 9-10%, Mg balance
Shape: Ingot
Unit weight: 4 kgs per piece
Available Grades
MLi2%: Li 1.8-2.2%, Mg Balance
MgLi5%: Li 4-6%, Mg Balance
MgLi10%: Li 9-10%, Mg Balance
About Magnesium Lithium Alloy
Magnesium lithium alloy is the lightest metal structural material in the world. It offers excellent thermal conductivity, electrical conductivity, and ductility. Originally developed for aerospace and military applications, it is now widely used in transportation, electronics, medical products, and other industries requiring lightweight structural materials.
Key Applications
- Audio diaphragm (high damping coefficient ~ 0.01, essential for premium audio components)
- Aerospace parts and special military materials (remote control aircraft panels, missiles, satellites)
- Sports equipment (bicycles, badminton rackets)
- High-end 3C product structures (notebook shells, tablet PC shells, PDAs, GPS devices)
Deep Processing Product Grades
| Type | ASTM Standard | Russia Standard |
|---|---|---|
| LA91 | LZ91 | LA141 |
| LAZ931 | LAZ933 | LAZ631 |
| MA21 | MA18 |
Available Forms
- Cast Billet, Plate: Dia.240 x L 550mm, Dia.90 x L 300mm, Dia.320 x L 2000mm, 180x800x2000mm or customized
- Extruded Plate: 14x330, 5x220mm or customized
- Extruded Bar: Dia.30mm, Dia.60mm, Dia.100mm or customized
- Forging plate: 55x400x600mm, 80x400x500mm, 110x350x400mm or customized
- Rolling Plate: Thickness 0.5-45 mm x Width 600mm, foil belt: Thickness 0.05-0.5mm x Width 80mm
Unique Characteristics
- Extremely lightweight with density typically less than 1.6g/cm³
- Phase structure varies with lithium content: single phase α structure (Li% <5.7wt.%), single-phase β structure (Li%>10.3wt.%)
- Improved deformation processing ability due to introduction of lithium element
Packaging & Shipping

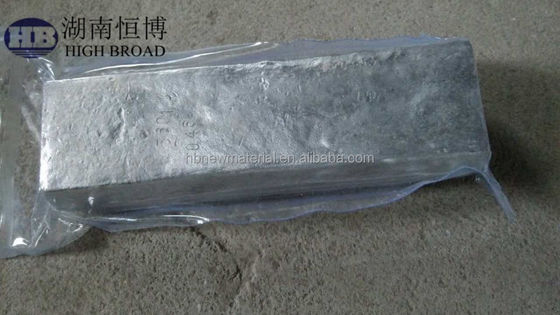

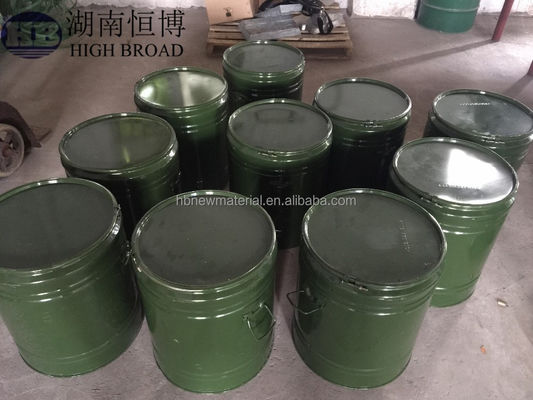

Vacuum sealed in plastic bags, then packed in steel drums on pallets for secure transportation.

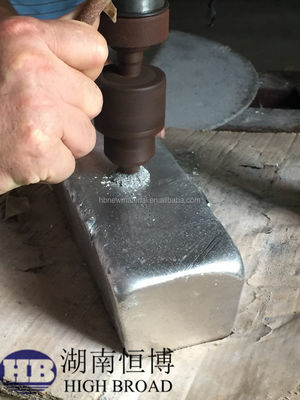

Quality Testing Methods
- Chemical analysis
- ICP Machine (PLASMA 1000)
- Rare earth special use machine (Thermo)
Company Information
China Hunan High Broad, established in 2006, specializes in researching, developing, producing and selling advanced materials. With an annual production capacity exceeding 1000 metric tons, we supply high-quality magnesium-based master alloys, aluminum-based master alloys, rare earth master alloys, and other specialized materials for aerospace, machine manufacturing, and telecommunications applications.
Our technical team provides comprehensive support including product development, processing solutions, and collaborative R&D projects with universities and industrial partners worldwide.
