معلومات تفصيلية |
|||
| قطر: | 80 ملم، 100 ملم | التكوين الكيميائي: | ملغ، المنغنيز، الزركون، CE، Y، الزنك |
|---|---|---|---|
| مادة: | معدن المغنيسيوم | شكل: | جولة الخام |
| أرض نادرة: | Y، Zn، Gd، Ce، Zr، La | طريقة الإنتاج: | لفة ساخنة، صب |
| قوة الشد: | 306 ميجا باسكال (WE43)، 280 ميجا باسكال (WE54)، 450 ميجا باسكال (WE94) | الإجهاد والدليل: | 234 ميجا باسكال (WE43)، 205 ميجا باسكال (WE54)، 370 ميجا باسكال (WE94) |
| استطالة: | 8% (WE43)، 4% (WE54)، 6% (WE94) | علاج حراري: | T5 |
| درجة حرارة كحد أقصى: | 300 درجة مئوية (572 درجة فهرنهايت) | محتوى الألمنيوم: | 2.5-3.5% (AZ31B)، 5.8-7.2% (AZ61A)، 7.8-9.2% (AZ80A) |
| محتوى الزنك: | 0.6-1.4% (AZ31B)، 0.45-1.5% (AZ61A)، 0.2-0.8% (AZ80A)، 4.8-6.2% (ZK60A) | محتوى المنغنيز: | 0.2-1.0% (AZ31B)، 0.15-0.5% (AZ61A)، 0.12-0.5% (AZ80A) |
| محتوى الزركونيوم: | 0.4-1.0% (WE43، WE54)، 0.4-0.7% (WE94)، 0.45% كحد أدنى (ZK60A) | ||
| إبراز: | Diameter 80 mm 100 mm Magnesium Billet,Biodegradable Magnesium Alloy Billet,High Strength Dissolving Magnesium Billet,Biodegradable Magnesium Alloy Billet,High Strength Dissolving Magnesium Billet |
||
منتوج وصف

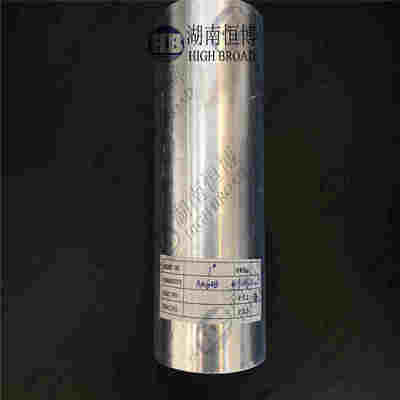

Diameter 80 mm 100 mm Dissolving Magnesium Alloy Billets
Dissolving Magnesium Alloys for Downhole Applications
- Biodegradable material widely used in oil extraction and underground tools as sealed ball material
- Manufactured from soluble magnesium alloy for fracturing construction tools
- Self-ablates underground after completing work tasks, mixing with liquid for complete degradation
- Eliminates channel blockage issues, removing need for drilling recovery process
- Reduces project difficulty while improving construction efficiency
- Also used in sewage treatment plugging applications with high processing performance
Our company has developed various proprietary soluble magnesium alloy balls composed of magnesium matrix and other alloying elements. These products feature customizable technical parameters including pressure resistance, temperature resistance, tensile strength, and dissolution rate to meet specific customer requirements.
Product Specifications
Commodity: Magnesium Billet / Magnesium Rare Earth Alloy Billet
Regular types: AZ31, AZ91, ZK60, WE43, WE54, WE94, ZM2(ZE41A), AM80
WE Series Magnesium Alloys
High-strength casting alloys with magnesium base containing Gadolinium, Yttrium, Zinc and Zirconium. Suitable for temperatures up to 300°C (572°F) with excellent mechanical properties and corrosion resistance. Applications include helicopter transmissions, power systems, aero-engines, sports cars, and missiles.
Chemical Composition (%)
| Specification | Y | Gd | Nd | Zn | Zr |
|---|---|---|---|---|---|
| WE54 | 4.71-5.5 | 1.0-2.0 | 1.5-2.0 | - | 0.4-1.0 |
| WE43 | 3.7-4.3 | 0-1.9 | 2.0-2.5 | - | 0.4-1.0 |
| WE94 | 3.5-4.5 | 8.5-9.5 | - | 1-1.5 | 0.4-0.7 |
Tensile Properties
| Specification | Thermal Treatment | 0.25% Proof Stress (Mpa) | Tensile Strength (Mpa) | Elongation % |
|---|---|---|---|---|
| WE43 | T5 | 234 | 306 | 8 |
| WE54 | T5 | 205 | 280 | 4 |
| WE94 | T5 | 370 | 450 | 6 |
Additional Alloy Specifications
AZ31B (ASTM B 107/B 107M)
| Elements | Al | Zn | Mn | Si | Fe | Cu | Ni | Ca | Others,total |
|---|---|---|---|---|---|---|---|---|---|
| Min% | 2.50 | 0.60 | 0.20 | ||||||
| Max% | 3.50 | 1.40 | 1.00 | 0.10 | 0.005 | 0.05 | 0.005 | 0.04 | 0.3 |
We also provide various magnesium-rare earth master alloys including MgMn, MgCa, NiMg, WE43, WE54, MgDy, MgEr, MgY, MgSc, MgZr, MgCe, MgLa, MgGd, MgNd, etc.

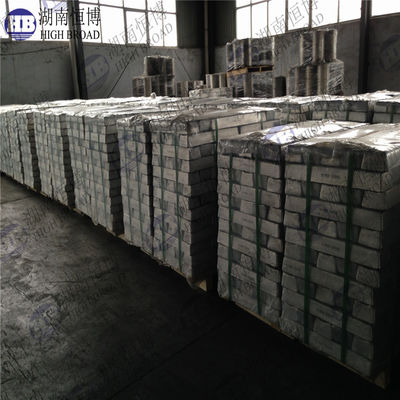

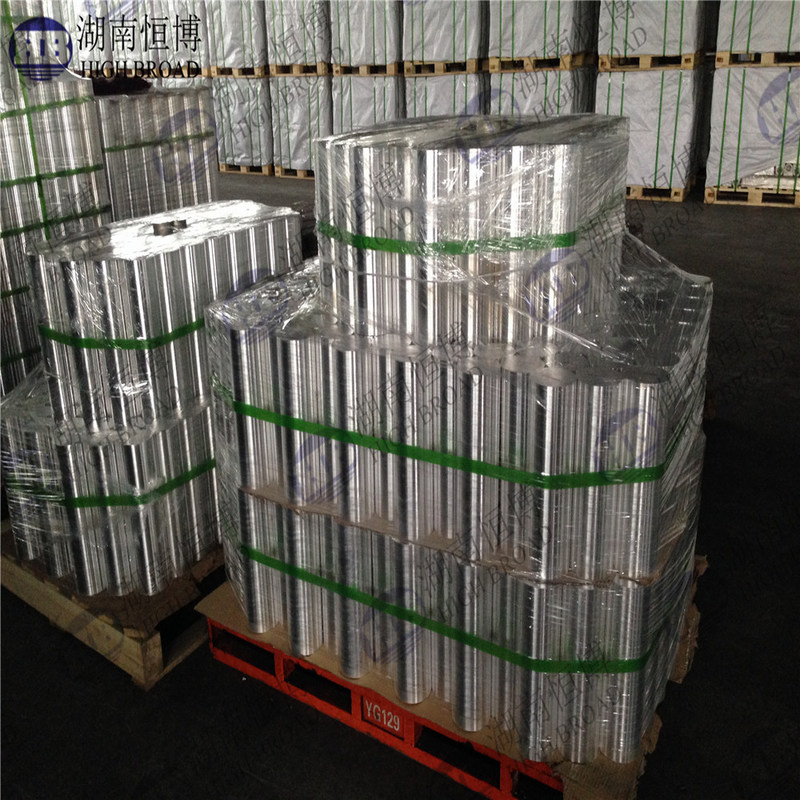

Packaging & Shipping
Wood case or pallet with plastic film strapped
Company Culture
Our Belief: Continuous Innovation
Our Spirit: Sincerity, Unity, Dedicated, Hardworking
Our Mission: Provide most advanced products & most professional technical solution
Company Introduction
China Hunan High Broad, established in 2006, specializes in researching, developing, producing and selling New Materials. With sales office in Changsha, China and manufacturing bases in Henan and Shanxi province with over 5000mt annual capacity. Our products include Magnesium base master alloy, Magnesium anodes, Aluminum anodes, Zinc anodes, Aluminum base master alloy, Rare earth master alloy, Zinc base master alloy, magnesium alloy billet, advanced Industrial Ceramics, and other new materials for aerospace, machine manufacturing, and electrommunication applications.
Our technical team possesses leading design and R&D capabilities, providing high quality, stable products along with technical solutions for production and processing. We participate in R&D projects with colleges and universities, and maintain strategic cooperation with companies worldwide.
Certification
Inspection / Lab
More Information
