MgY30 Master Alloy Ingot with 30% Yttrium Content for Aerospace Grade Grain Refinement Casting
تفاصيل المنتج:
| مكان المنشأ: | هونان، الصين |
| اسم العلامة التجارية: | High Broad |
| إصدار الشهادات: | ISO 9001:2015, RoHS |
| رقم الموديل: | ملغي30 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 50 كجم |
|---|---|
| الأسعار: | USD 26-46 / Kilogram |

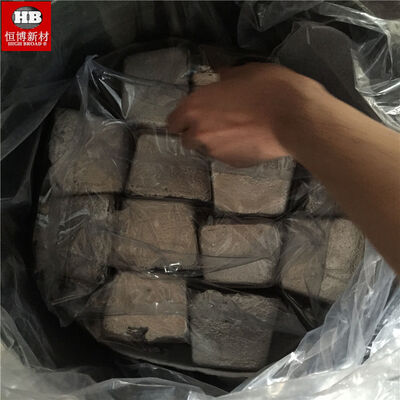

| تفاصيل التغليف: | أكياس رقائق الألومنيوم محكمة الغلق بالفراغ داخل علب من الخشب الرقائقي مع منصات مدخنة مجففة بدرجة الت |
| وقت التسليم: | 5 أيام عمل للمخزون، 10-15 يوما للإنتاج |
| شروط الدفع: | / تي تي، خطاب الاعتماد، ويسترن يونيون |
| القدرة على العرض: | 5000 كيلوغرام شهريا |
|
معلومات تفصيلية |
|||
| نطاق ذوبان: | 620-640 درجة مئوية | محتوى الإيتريوم: | 30% +/-2% |
|---|---|---|---|
| وزن السبائك المعدنية: | 5 كجم/10 كجم | كثافة: | 2.35 جم/سم3 (تقريبًا) |
| مقاومة زحف: | تصل إلى 300 درجة مئوية | استمارة: | سبيكة |
| إبراز: | Magnesium Yttrium 30% Master Alloy,Aerospace Grade Grain Refiner,High Temperature Creep Resistance MgY |
||
منتوج وصف

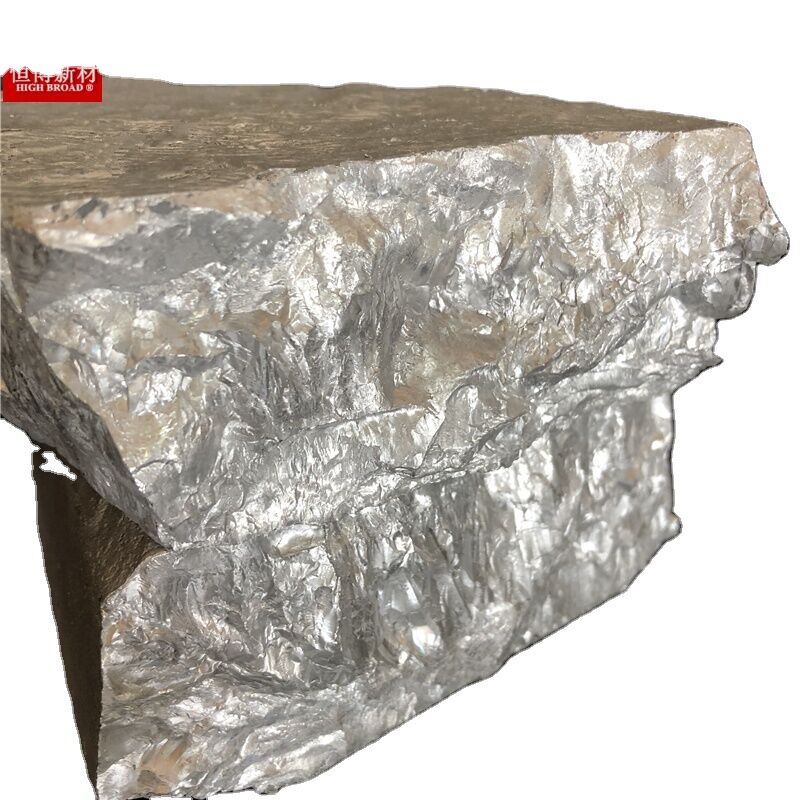

MgY30 Magnesium Yttrium 30% Master Alloy Ingot
The MgY30 Magnesium Yttrium 30% Master Alloy is a premium grain refiner and strengthening additive engineered for high-performance magnesium alloys. By introducing yttrium into the magnesium matrix, this master alloy significantly enhances creep resistance at elevated temperatures up to 300 degrees C, making it an essential material for aerospace-grade castings and components subjected to extreme thermal and mechanical loads.
Key Product Advantages
Superior Grain Refinement
Yttrium acts as a potent grain refiner in magnesium alloys, producing a fine, equiaxed grain structure that dramatically improves mechanical properties including tensile strength, yield strength, and elongation.
High-Temperature Creep Resistance
The formation of thermally stable Mg-Y intermetallic phases provides outstanding creep resistance at temperatures up to 300 degrees C, far exceeding conventional magnesium alloys.
Homogeneous Yttrium Distribution
Advanced melting and casting processes ensure uniform yttrium dispersion throughout the ingot, guaranteeing consistent alloying results and predictable mechanical performance in every batch.
WE43 & WE54 Compatible
Specifically formulated for producing WE43 and WE54 series aerospace magnesium alloys, meeting stringent industry specifications for aircraft engine housings, gearboxes, and structural components.
Typical Applications
- Aerospace engine housing and gearbox castings
- High-temperature structural components for satellites and spacecraft
- Helicopter transmission cases requiring creep resistance
- Tactical-grade magnesium alloy formulations
- Research and development of advanced Mg-RE alloys
Quality Assurance
Every batch undergoes rigorous optical emission spectroscopy (OES) analysis to verify yttrium content within +/-1%. Our ISO 9001:2015 certified facility maintains strict process controls from raw material selection through final packaging. Each shipment includes a detailed certificate of analysis (COA) documenting chemical composition and traceability data.
