99.999% Purity Yttrium Oxide Powder with D50 5μm Particle Size for Thermal Barrier Coating in Aerospace Applications
تفاصيل المنتج:
| مكان المنشأ: | جيانغشي، الصين |
| اسم العلامة التجارية: | High Broad |
| إصدار الشهادات: | ISO 9001:2015, REACH |
| رقم الموديل: | Y2O3-4N-PS |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 5 كجم |
|---|---|
| الأسعار: | USD 60-150 / Kilogram |
| تفاصيل التغليف: | عبوة داخلية محكمة الغلق بطبقة مزدوجة مع حاجز رطوبة من رقائق الألومنيوم، ومعبأة في براميل من الألياف |
| وقت التسليم: | 5-15 يوم عمل بعد تأكيد الطلب |
| شروط الدفع: | / تي تي، خطاب الاعتماد، باي بال، ويسترن يونيون |
| القدرة على العرض: | 5000 كيلوغرام شهريا |
|
معلومات تفصيلية |
|||
| حجم الجسيمات: | 5-25 ميكرومتر | نقطة الانصهار: | 2425 درجة مئوية |
|---|---|---|---|
| هيكل كريستال: | مكعب | كثافة: | 5.01 جم/سم3 |
| نقاء: | 99.99% (4N) | قابلية التدفق: | ممتاز (تدفق القاعة) |
| إبراز: | 4N Yttrium Oxide Powder,Plasma Spray Coating Grade,Aerospace Turbine Protection |
||
منتوج وصف

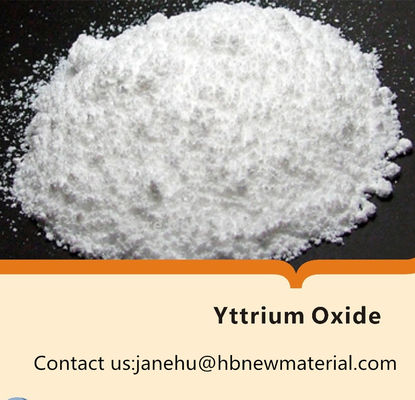

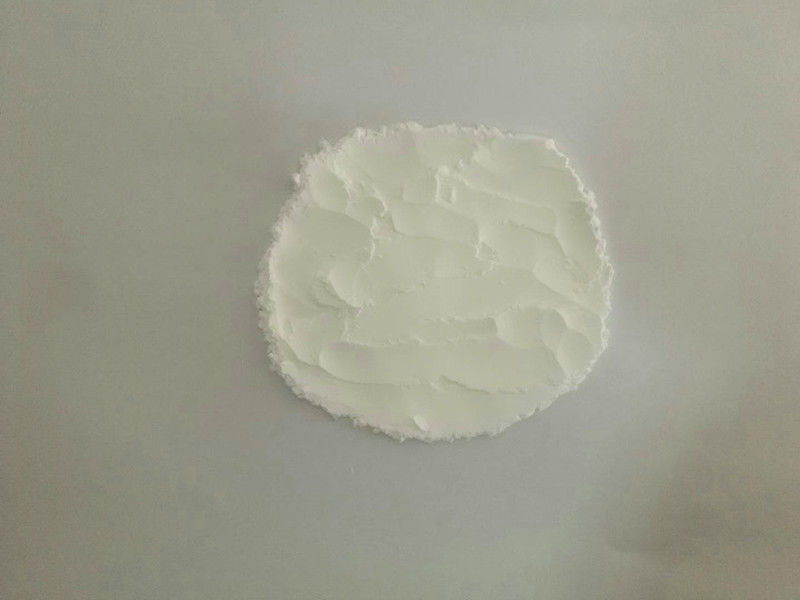

99.999% (5N) Yttrium Oxide (Y₂O₃) Plasma Spray Grade Powder
Our 99.99% (5N) yttrium oxide powder is manufactured in China using advanced rare earth extraction and purification technology. This plasma spray grade Y₂O₃ powder is specifically engineered for plasma spray deposition of thermal barrier coatings on aerospace components, delivering exceptional consistency and performance in demanding industrial coating environments.
Key Features
- 99.99% (5N) purity with tightly controlled rare earth impurity profile
- Optimized 5-25 μm particle size for stable plasma spray feeding and uniform coating buildup
- Excellent high-temperature phase stability up to 2300°C for thermal barrier coating integrity
- Low thermal conductivity combined with high thermal expansion coefficient matching turbine alloys
- REACH compliant and accompanied by full Certificate of Analysis with each batch
Technical Specifications
| Parameter | Specification |
|---|---|
| Purity | 99.999% (5N) |
| Particle Size D50 | 5-25 μm |
| Crystal Structure | Cubic |
| CAS Number | 1314-36-9 |
| Appearance | White Powder |
| Density | 5.01 g/cm³ |
| Melting Point | 2425 °C |
| Flowability | Excellent (Hall Flow) |
Recommended Applications
This yttrium oxide powder is widely used in thermal spray coating, plasma spray deposition, ceramic surface treatment, and other industrial coating processes requiring high purity rare earth materials. Its excellent thermal stability, chemical resistance, and plasma etch resistance make it ideal for protective coatings in harsh operating environments.
Packaging & Storage

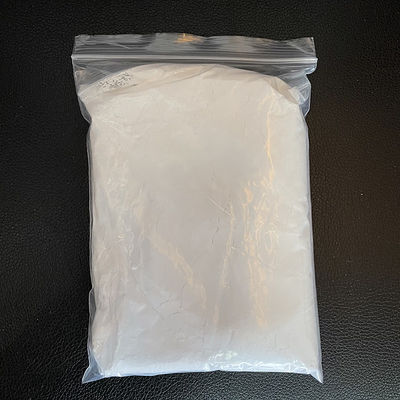

Double-layer vacuum sealed with aluminum foil moisture barrier. Packed in 25kg fiber drums with desiccant and humidity indicator card. Store at 15-25°C with relative humidity below 40%.
