Silicon Carbide Aramid Composite Ballistic Protection Plate with NIJ Level III Ceramic Strike Face in 250x300mm Size
تفاصيل المنتج:
| مكان المنشأ: | هونان، الصين |
| اسم العلامة التجارية: | High Broad |
| إصدار الشهادات: | ISO 9001:2015, NIJ 0101.06 Level III |
| رقم الموديل: | بلاط كذا |
| وثيقة: | SIC Ballistic Armor Tiles-P...ad.pdf |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 1000 قطعة |
|---|---|
| الأسعار: | USD 0.1-2/ Piece |

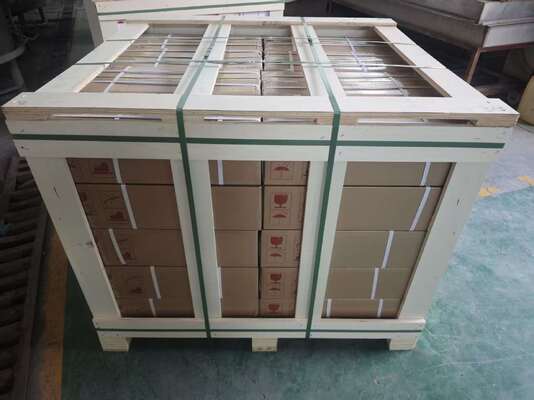

| تفاصيل التغليف: | حقيبة PE فردية + رغوة EPE + كرتون مموج بدرجة التصدير مع المجفف |
| وقت التسليم: | 7-10 أيام عمل للمخزون، 20-30 يوما للإنتاج |
| شروط الدفع: | / تي تي، خطاب الاعتماد، ويسترن يونيون |
| القدرة على العرض: | 1200000 قطعة شهريا |
|
معلومات تفصيلية |
|||
| كثافة: | 1.95-2.20 جم/سم3 (مركب) | قوة العاطفة: | 380-450 ميجا باسكال (طبقة كربيد السيليكون) |
|---|---|---|---|
| حجم البلاط: | 250x300 ملم | الكثافة المساحية: | ≥28 كجم/م² |
| صلابة الكسر: | 3.5-4.5 ميجاباسكال·م½ (كربيد) | سماكة: | 17.0 ملم (إجمالي مركب) |
| إبراز: | SiC Aramid Hybrid Armor,Ceramic Composite Backing Panel,NIJ III Hybrid Protection |
||
منتوج وصف
Silicon Carbide Aramid Composite Ballistic Protection Plate
SiC + Aramid Hybrid Composite Protection Plate
NIJ Level III | SiC Strike Face + Aramid Backing | Optimized BFD Control
Hybrid Ceramic-Fabric Design
- Hybrid Ceramic-Fabric Design
- Superior BFD Control
The Power of Hybrid Design

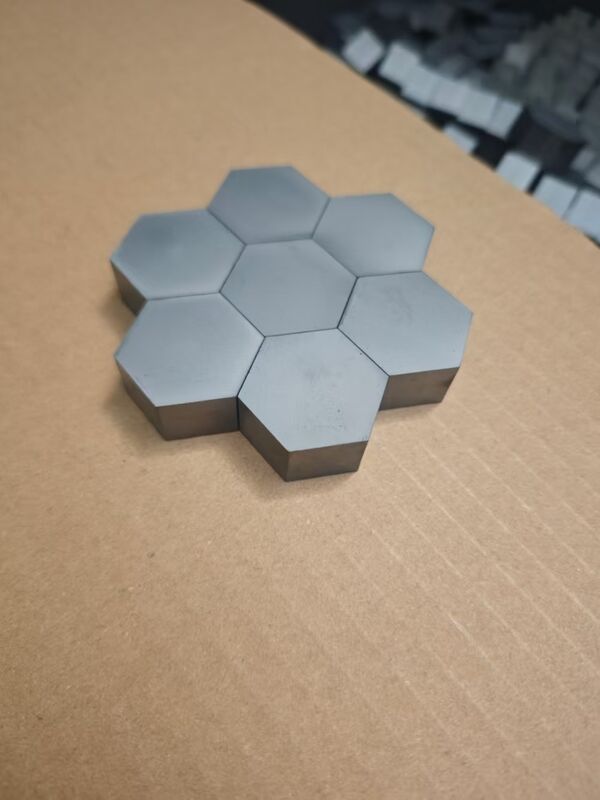

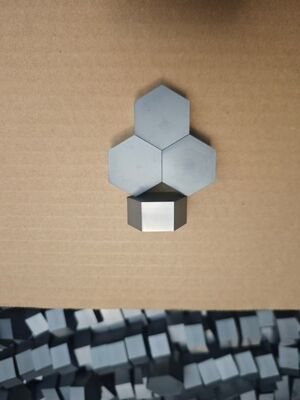

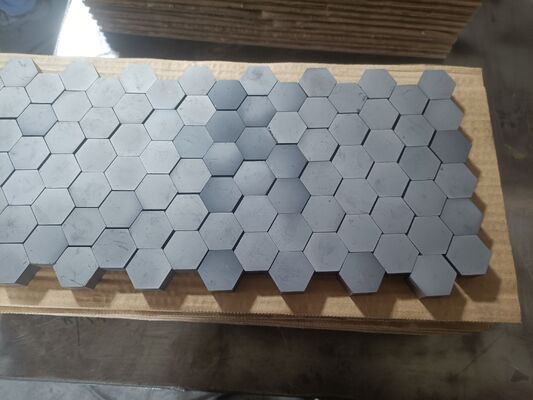

The High Broad Silicon Carbide Tiles combines two complementary materials: a pressureless sintered SiC ceramic strike face that erodes and fractures incoming projectiles, and a multi-layer aramid fabric backing that catches fragments and controls back-face deformation (BFD). This hybrid architecture delivers an optimized balance of protection, weight, and cost.
Compared with Al₂O₃-aramid panels, the SiC version weighs 15-18% less. Compared with B₄C-aramid panels, it delivers virtually equivalent protection at 45-55% lower material cost.
Hybrid System Comparison
| Hybrid System | Areal Density | BFD (typical) | Cost Index |
|---|---|---|---|
| SiC + Aramid | ≤ 28 kg/m² | ≤ 25mm | ★★ Moderate |
| Al₂O₃ + Aramid | ~34 kg/m² | ≤ 28mm | ★ Lower |
| B₄C + Aramid | ~24 kg/m² | ≤ 22mm | ★★★★ High |
Optimized BFD Control
The aramid backing's high tensile strength (3600 MPa) and controlled delamination behavior keep back-face deformation (BFD) below 25mm—well within NIJ 0101.06 limits—even at close shot spacing.
Autoclave Lamination
SiC tiles are bonded to aramid layers under controlled heat and pressure in an autoclave, ensuring void-free adhesive distribution and consistent bond strength across the entire panel surface.
Thermal Stability
Aramid fabric maintains its mechanical properties from -40°C to +160°C, providing consistent ballistic performance across extreme operational temperature ranges.
Multi-Curve Forming
The aramid backing can be formed into single-curve and multi-curve shapes during lamination to match torso geometry for improved wearer comfort in body armor applications.
Experience the SiC-Aramid hybrid advantage—request a quote today
Email: janehu@hbnewmaterial.com | Ballistic test reports and technical datasheets available
Email: janehu@hbnewmaterial.com | Ballistic test reports and technical datasheets available
